SoapReturn
WebService流程的数据输出控件，服务运行时该控件执行完毕后结束所属的流程。
业务属性
| 属性 | 含义 | 说明 | 输入限定 | 示例值 |
|---|---|---|---|---|
| enable | 是否启用该控件，未启用时不编译 | 是否编译 | 选择值 | 启用 |
| text | 与控件关联的文本 | 设计页控件显示 | 常量 | return |
| dataFormat | 返回数据 | webService请求的返回数据 | 常量，Xml数据节点可用流程变量/流程变量 |
dataFormat输入说明
dataFormat中的Xml格式数据请严格按照WebService流程的返回参数格式的定义来设置。
例：
Webservice流程中的返回参数格式定义为：

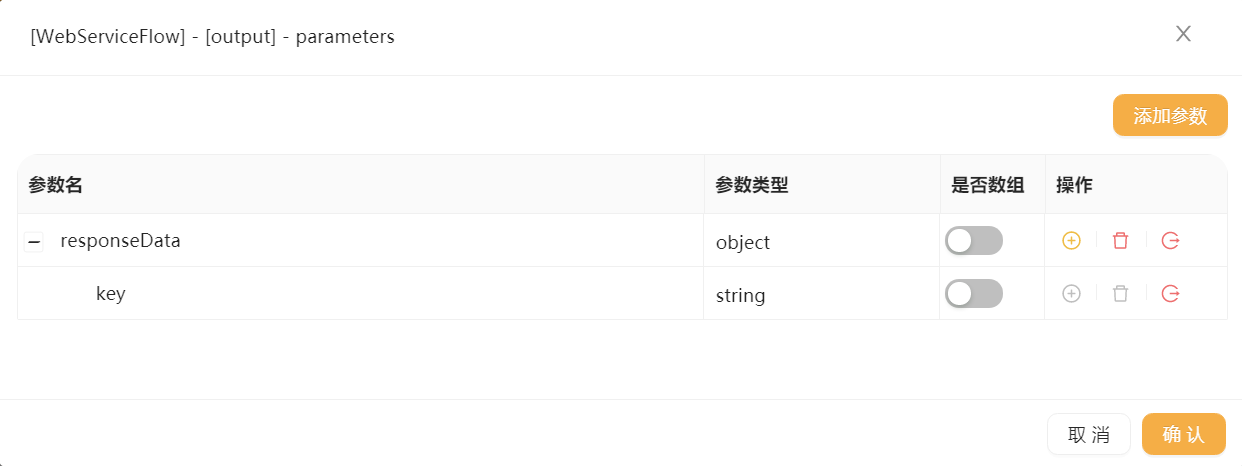

返回一个名称为responseData的自定义类型参数，该类型中含有一个名称为key、类型为string的属性
则dataFormat的返回Xml框架为：
xml<responseData> <key>?</key> </responseData><responseData> <key>?</key> </responseData>只需要将
?更换成实际数据即可
使用示例
假设Webservice流程中的返回参数格式定义为：
返回一个名称为responseData的自定义类型参数，该类型中含有一个名称为key、类型为string的属性
输出常量

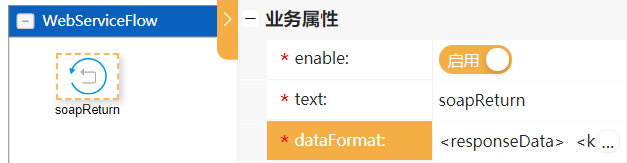

- SoapReturn控件属性设置
dataFormat输入：
xml
<responseData>
<key>hello orapis</key>
</responseData><responseData>
<key>hello orapis</key>
</responseData>
- WebService调用
使用http请求访问该Web方法：
$ curl -X POST "http://localhost:6636/newComponent/ws_demo" -H "Content-Type: text/xml;charset=UTF-8" -d "<soapenv:Envelope xmlns:soapenv=\"http://schemas.xmlsoap.org/soap/envelope/\" xmlns:orap=\"http://www.orapis.com/\"> <soapenv:Header></soapenv:Header> <soapenv:Body> <orap:WebServiceFlow_Request> <orap:requestData> <orap:keyDemo>a</orap:keyDemo> </orap:requestData> </orap:WebServiceFlow_Request> </soapenv:Body> </soapenv:Envelope>"$ curl -X POST "http://localhost:6636/newComponent/ws_demo" -H "Content-Type: text/xml;charset=UTF-8" -d "<soapenv:Envelope xmlns:soapenv=\"http://schemas.xmlsoap.org/soap/envelope/\" xmlns:orap=\"http://www.orapis.com/\"> <soapenv:Header></soapenv:Header> <soapenv:Body> <orap:WebServiceFlow_Request> <orap:requestData> <orap:keyDemo>a</orap:keyDemo> </orap:requestData> </orap:WebServiceFlow_Request> </soapenv:Body> </soapenv:Envelope>"根据
http://localhost:6636/api?wsdl（api为项目属性url前缀、localhost为服务器IP）获取WSDL文件，解析该WSDL文件可获取该http请求url和请求体
http返回参数：
xml
<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">
<soap:Body>
<WebServiceFlow_Response>
<responseData>
<key>hello orapis</key>
</responseData>
</WebServiceFlow_Response>
</soap:Body>
</soap:Envelope><soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">
<soap:Body>
<WebServiceFlow_Response>
<responseData>
<key>hello orapis</key>
</responseData>
</WebServiceFlow_Response>
</soap:Body>
</soap:Envelope>输出指定变量
- 定义变量

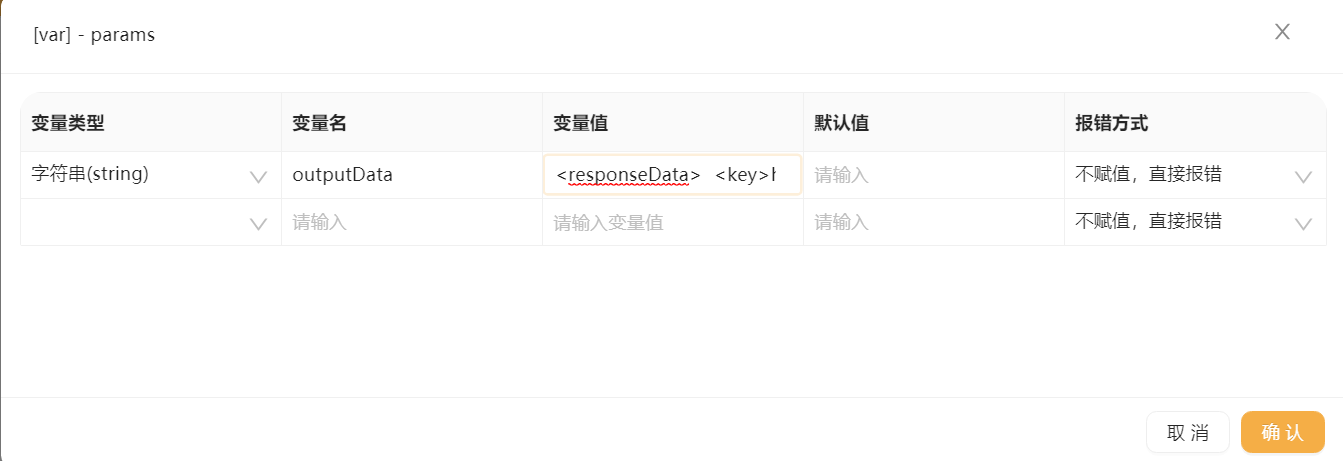

使用Var控件，定义string变量outputData，内容为：
xml
<responseData>
<key>hello orapis</key>
</responseData><responseData>
<key>hello orapis</key>
</responseData>

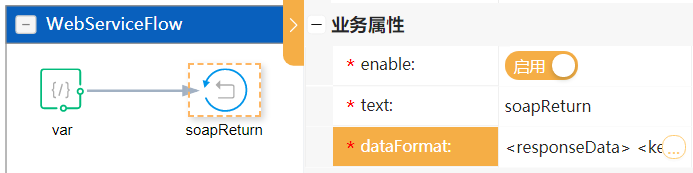

- SoapReturn控件属性设置
dataFormat输入：
xml
#{outputData}#{outputData}
- WebService调用
使用http请求访问该Web方法：
$ curl -X POST "http://localhost:6636/newComponent/ws_demo" -H "Content-Type: text/xml;charset=UTF-8" -d "<soapenv:Envelope xmlns:soapenv=\"http://schemas.xmlsoap.org/soap/envelope/\" xmlns:orap=\"http://www.orapis.com/\"> <soapenv:Header></soapenv:Header> <soapenv:Body> <orap:WebServiceFlow_Request> <orap:requestData> <orap:keyDemo>a</orap:keyDemo> </orap:requestData> </orap:WebServiceFlow_Request> </soapenv:Body> </soapenv:Envelope>"$ curl -X POST "http://localhost:6636/newComponent/ws_demo" -H "Content-Type: text/xml;charset=UTF-8" -d "<soapenv:Envelope xmlns:soapenv=\"http://schemas.xmlsoap.org/soap/envelope/\" xmlns:orap=\"http://www.orapis.com/\"> <soapenv:Header></soapenv:Header> <soapenv:Body> <orap:WebServiceFlow_Request> <orap:requestData> <orap:keyDemo>a</orap:keyDemo> </orap:requestData> </orap:WebServiceFlow_Request> </soapenv:Body> </soapenv:Envelope>"http返回参数：
xml
<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">
<soap:Body>
<WebServiceFlow_Response>
<responseData>
<key>hello orapis</key>
</responseData>
</WebServiceFlow_Response>
</soap:Body>
</soap:Envelope><soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">
<soap:Body>
<WebServiceFlow_Response>
<responseData>
<key>hello orapis</key>
</responseData>
</WebServiceFlow_Response>
</soap:Body>
</soap:Envelope>Xml数据中使用流程变量

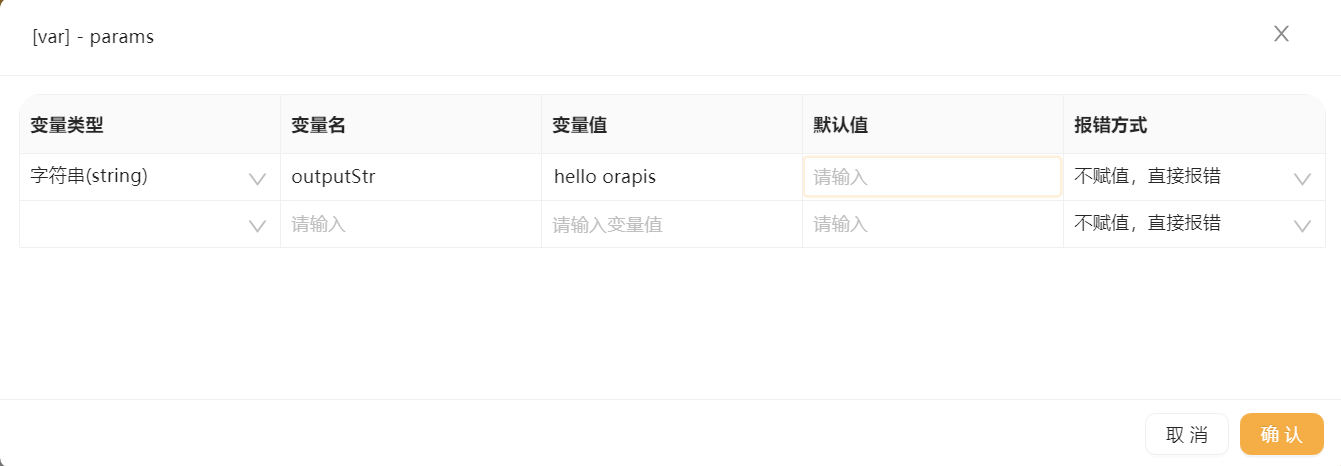

使用Var控件，定义string变量outputStr，内容为：hello orapis
- SoapReturn控件属性设置
dataFormat输入：
xml
<responseData>
<key>#{outputStr}</key>
</responseData><responseData>
<key>#{outputStr}</key>
</responseData>
- WebService调用
使用http请求访问该Web方法：
$ curl -X POST "http://localhost:6636/newComponent/ws_demo" -H "Content-Type: text/xml;charset=UTF-8" -d "<soapenv:Envelope xmlns:soapenv=\"http://schemas.xmlsoap.org/soap/envelope/\" xmlns:orap=\"http://www.orapis.com/\"> <soapenv:Header></soapenv:Header> <soapenv:Body> <orap:WebServiceFlow_Request> <orap:requestData> <orap:keyDemo>a</orap:keyDemo> </orap:requestData> </orap:WebServiceFlow_Request> </soapenv:Body> </soapenv:Envelope>"$ curl -X POST "http://localhost:6636/newComponent/ws_demo" -H "Content-Type: text/xml;charset=UTF-8" -d "<soapenv:Envelope xmlns:soapenv=\"http://schemas.xmlsoap.org/soap/envelope/\" xmlns:orap=\"http://www.orapis.com/\"> <soapenv:Header></soapenv:Header> <soapenv:Body> <orap:WebServiceFlow_Request> <orap:requestData> <orap:keyDemo>a</orap:keyDemo> </orap:requestData> </orap:WebServiceFlow_Request> </soapenv:Body> </soapenv:Envelope>"http返回参数：
xml
<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">
<soap:Body>
<WebServiceFlow_Response>
<responseData>
<key>hello orapis</key>
</responseData>
</WebServiceFlow_Response>
</soap:Body>
</soap:Envelope><soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">
<soap:Body>
<WebServiceFlow_Response>
<responseData>
<key>hello orapis</key>
</responseData>
</WebServiceFlow_Response>
</soap:Body>
